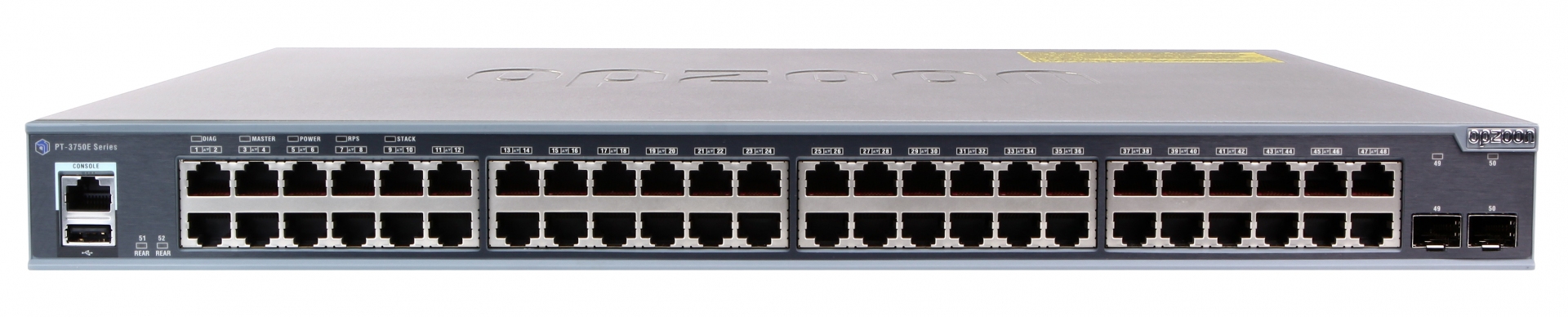

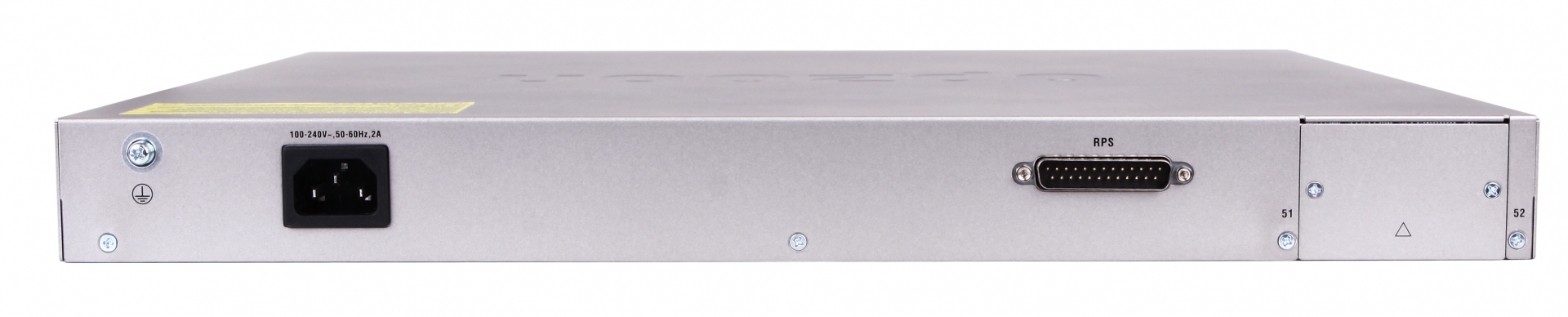

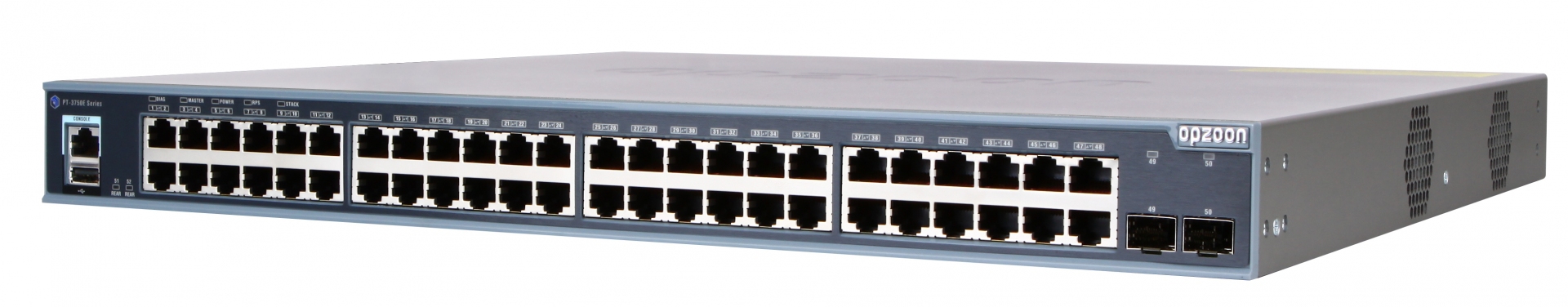

Opzoon PT-3750E-52T-S

Opzoon PT-3750E-52T-S


  • Opzoon PT-3750E-52T-S

    Configuration
    PT-3750E-52T-S:48 x 10/100/1000 BASE-T + 4 x 10 GbE SFP+
    Capability
    Up to 176Gbps throughput
    Up to 130.9Mpps forwarding
    Support High port density for 10GbE
    Wire-speed L2/L3 forwarding
    Fast Ethernet ring network protection technology-OPRP
    Multi-service and Security Capacity
    Complete multicast solutions for IPTV, Voice, and Data-distribution
    Support IEEE802.1x flow control
    Up to 8 queues per port for QoS function
    Effective MAC security and hardware ACL
    Support Anti-BT, IP Conflict Prevention, Trust View, and Guest VLAN
    Comprehensive ARP attacking prevention
    Layer 3
    Provide lite IP routing functions as RIPv1/v2 and Static Routing
    Support IPv4/IPv6 Dual Protocol Stack
    Easy Management
    Support SNMPv1/v2/v3 Support WEB, SSH, Syslog, TELNET, and SHELL
    CUP protection and hardware/software watchdog
    Support WEB, SSH, Syslog, TELNET, and SHELL

  • Opzoon PT-3750E-52T-S
    Access Switches PT-3750E-28T-S PT-3750E-52T-S PT-3750E-28F-S PT-3750E-28P-S
    Ports 24x 10/100/1000 BASE-T 48 10/100/1000 BASE-T 24 x GbE SFP 24x 10/100/1000 BASE-T
    Uplink Interface 4 x 10 GbE SFP+ 4 x 10 GbE SFP+ 4 x 10 GbE SFP+ 4 x 10 GbE SFP+
    PoE - - - 802.3af standard (max 15.4w)
    802.3at standard (max 30w)
    Switching Capacity 128Gbps 176Gbps 128Gbps 128Gbps
    Package Forwarding Rate 95.2Mpps 130.9Mpps 95.2Mpps 95.2Mpps
    Power Consumption ≤65W ≤90W ≤90W ≤530W(PoE)
    Jumbo frame 12KB
    Dimension(W*H*D mm) 440*43.4*318 440*43.4*396 440*43.4*318 440*43.4*318
    Working Humidity 5%~95% Noncondensing
    Working Temperatur 0°C~50°C
    Storage Temperature -40°C~70°
    Power Supply AC:100-240V, 50-60 Hz
  • Opzoon PT-3750E-52T-S

    Ulotki:
    Opzoon PT-3750E
