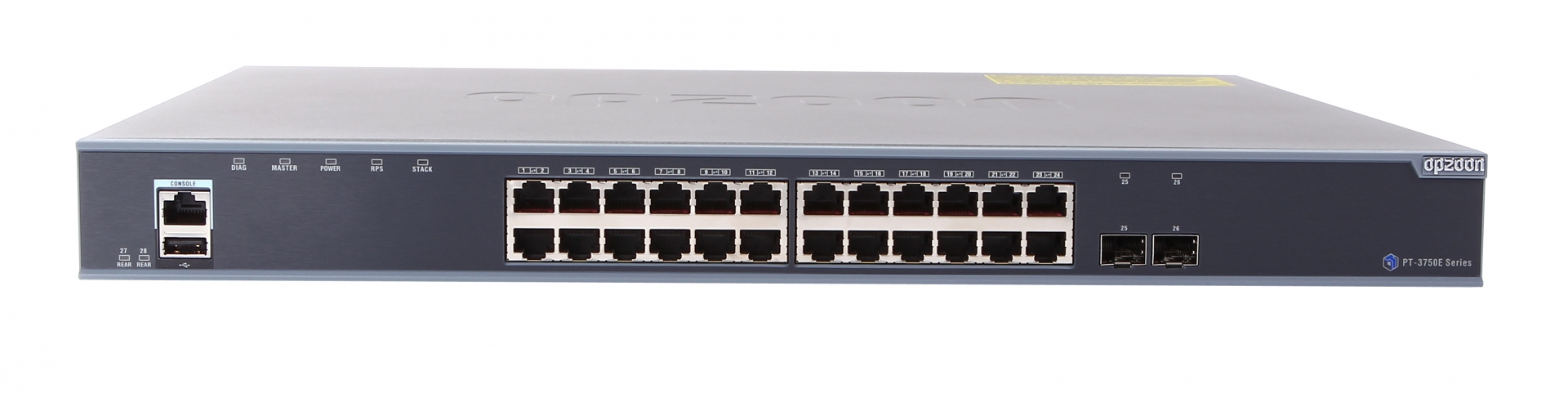

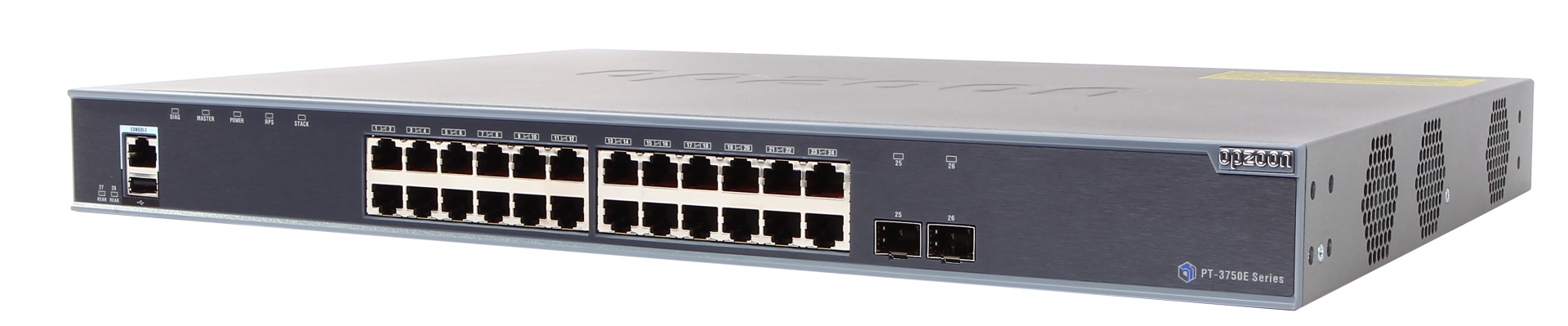

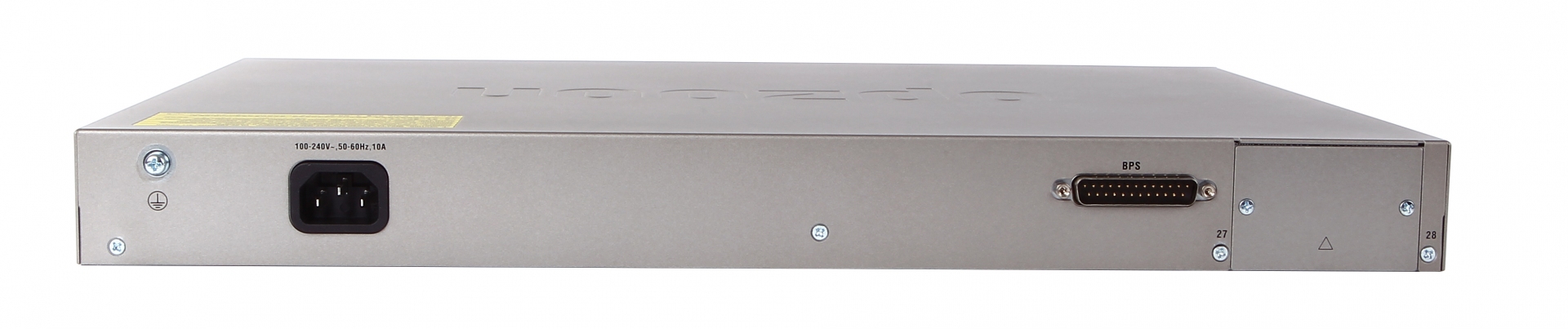

Opzoon PT-3750E-28T

Opzoon PT-3750E-28T


  • Opzoon PT-3750E-28T

    Configuration
    PT-3750E-28T:24 x 10/100/1000 BASE-T + 4 x 10 GbE SFP+
    Capability
    Up to 128Gbps throughput
    Up to 95.2Mpps forwarding
    Support High port density for 10GbE
    Wire-speed L2/L3 forwarding
    Fast Ethernet ring network protection technology-OPRP
    Complete IPv6 features
    Multi-service and Security Capacity
    Complete multicast solutions for IPTV, Voice, and Data-distribution
    Support IEEE802.1x flow control
    Up to 8 queues per port for QoS function
    Effective MAC security and hardware ACL
    Support Anti-BT, IP Conflict Prevention, Trust View, and Guest VLAN
    Comprehensive ARP attacking prevention
    MPLS Multi-VRF reduces investment of MPLS VPN deployment
    Lite Layer 3
    Provides IP routing features as RIPv1/v2, OSPF, BGP, and ISISv4
    Support VRRP and GR(Graceful Restart)
    IPv4/IPv6 Tunneling
    Easy Management
    Support SNMPv1/v2/v3
    Support WEB, SSH, Syslog, TELNET, and SHELL
    CUP protection and hardware/software watchdog

  • Opzoon PT-3750E-28T
    Access Switches PT-3750E-28T PT-3750E-52T PT-3750E-28F PT-3750E-28P
    Ports 24x 10/100/1000 BASE-T 48 10/100/1000 BASE-T 24 x GbE SFP 24x 10/100/1000 BASE-T
    Uplink Interface 4 x 10 GbE SFP+ 4 x 10 GbE SFP+ 4 x 10 GbE SFP+ 4 x 10 GbE SFP+
    PoE - - - 802.3af standard (max 15.4w)
    802.3at standard (max 30w)
    Switching Capacity 128Gbps 176Gbps 128Gbps 128Gbps
    Package Forwarding Rate 95.2Mpps 130.9Mpps 95.2Mpps 95.2Mpps
    Power Consumption ≤65W ≤90W ≤90W ≤530W(PoE)
    Jumbo frame 12KB
    Dimension(W*H*D mm) 440*43.4*318 440*43.4*396 440*43.4*318 440*43.4*318
    Working Humidity 5%~95% Noncondensing
    Working Temperatur 0°C~50°C
    Storage Temperature -40°C~70°
    Power Supply AC:100-240V, 50-60 Hz
  • Opzoon PT-3750E-28T

    Ulotki:
    Opzoon seria PT-3750E
