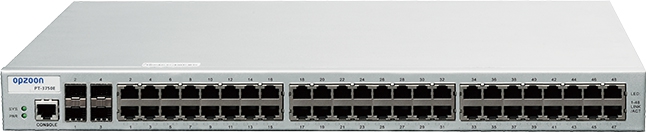

Opzoon PT-3560-52T


  • Opzoon PT-3560-52T

    Configuration
    PT-3560-52T：48 x 10/100 BASE-T + 4 x GbE SFP Combo
    Capability
    Layer 3 switch with expanded Gigabit interface
    Up to 17.6Gbps throughput
    Up to 13.1Mpps forwarding
    Wire-speed L2/L3 forwarding
    MPLS VPN
    Support carrier-class OAM
    Multi-service and Security Capacity
    Complete multicast solutions for IPTV, Voice, and Data-distribution
    Support NAT function
    Support IEEE802.1x flow control
    Effective MAC security and hardware ACL
    Support Anti-BT, IP Conflict Prevention, Trust View, and Guest VLAN
    Up to 8 queues per port for QoS function
    Reliability
    Rapid link redundancy and loop prevention by STP and Smart Link
    Support VRRP and GR(Graceful Restart)
    ECMP and PBR provide flexible routing forwarding
    Easy Management
    Support SNMPv1/v2/v3
    Support WEB, SSH, Syslog, TELNET, and SHELL

  • Opzoon PT-3560-52T
    Access Switches PT-3560-28T PT-3560-52T
    Ports 24 x 10/100 BASE-T 48x 10/100 BASE-T
    Uplink Interface 4 x GbE SFP Combo 4 x GbE SFP Combo
    PoE - -
    Switching Capacity 13.2Gbps 17.6Gbps
    Package Forwarding Rate 9.8Mpps 13.1Mpps
    Power Consumption ≤60W ≤60W
    Jumbo frame 9KB
    Dimension(W*H*D mm) 442*44*208 442*44*225
    Working Humidity 10%～85% Noncondensing
    Working Temperatur 0°C～60°C
    Storage Temperature -40°C～80°
    Power Supply AC:100-240V, 50-60 Hz
